🔬 EVA AI for Science Intelligent Coin Cell Assembly SystemDeployed in a USTC Laboratory
Recently, Anhui Provincial Governor Wang Qingxian visited the University of Science and Technology of China (USTC) to inspect the use of artificial intelligence to empower scientific research, with a focus on theUSTC State Key Laboratory of Precision and Intelligent ChemistryThe laboratory has significantly improved research efficiency through AI + robotics and achieved a range of cutting-edge results.
(Click the image to read the original article)

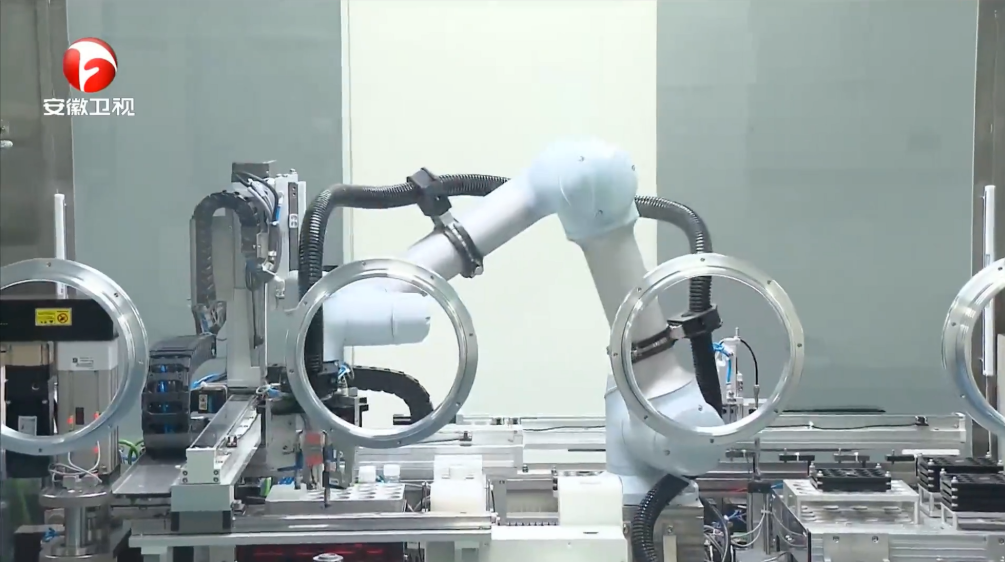

🎥 Featured prominently: in the inspection video at56–59 seconds, EVA AI for Science’sIntelligent Coin Cell Assembly Systemappears in the laboratory, where it is being used for research experiments—this scene marksthe scientific community’s recognition of EVA AI for Science’s technological capabilities and reliability.
💡 AI + Research: The Future Is Here
EVA AI for Science will continue advancing innovation in Embodied AI for Science (EAI4S), working with leading research institutions to accelerate breakthroughs in materials for new energy, advanced materials, and other fields!
Designed specifically for researchers developing key lithium-ion battery materials, this system supports fully automated, end-to-end assembly of lithium-ion batteries, open-circuit voltage testing, and more
System highlights:
• Flexible robotic-arm design: A high-precision servo control system delivers micron-level positioning accuracy. Dedicated suction cups for different materials prevent cross-contamination while significantly improving coin-cell assembly accuracy and efficiency
• High-precision gantry transfer: Equipped with a high-precision gantry transfer system, the unit supports electrolyte barcode scanning, lid opening and closing, and high-precision electrolyte dispensing. It enables precise addition and traceability across multiple electrolyte batches while avoiding cross-contamination between different electrolytes
• Dual-vision recognition and calibration: High-resolution cameras and AI image-recognition algorithms identify the position and orientation of battery components and calibrate the robotic arm in real time. The system records alignment data for the cathode, anode, and separator of every coin cell; supports barcode scanning of positive shells; and records a unique ID for each cell to enable traceability of assembly data
• Automatic electrode weighing: A high-precision automated weighing system weighs electrode sheets automatically, records the electrode weight of every cell, and links it to the cell’s unique ID
• Self-cleaning sealing and pressing system: After a cell is sealed and pressed, the system automatically cleans the sealing and pressing mechanism to prevent lithium-salt precipitation from affecting assembly accuracy and to avoid electrolyte cross-contamination
• Open-circuit voltage testing:Finished cells undergo automatic open-circuit voltage testing to ensure that every cell meets performance requirements. Nonconforming cells are automatically screened out to ensure finished-product quality
Specifications:
Model | NEB-AS1001 (Basic) | NEB-AS2001 (Professional) |
Assembly and testing speed | 50 cells/hour | 50 cells/hour |
Coin cells assembled per run | 32 cells/batch | 64 cells/batch |
Electrolyte dispensing range | 10~80ul | 10~80ul |
Electrolyte throughput per run | 5 bottles | 12 bottles |
Cell specifications | CR2032、CR2025、CR2016 | CR2032、CR2025、CR2016 |
Voltage measurement resolution | ≤0.001 V | ≤0.001 V |
Assembly positioning deviation | ±0.2mm (cathode sheet, anode sheet, lithium sheet, separator) | ±0.2mm (cathode sheet, anode sheet, lithium sheet, separator) |
Robot specifications | 4 degrees of freedom, end-of-arm payload ≥3kg, repeatability ±0.02mm | 6 degrees of freedom, end-of-arm payload ≥5kg, repeatability ±0.02mm |
Overall dimensions | L2600mm × W1400mm × H2000mm | L3650mm × W1550mm × H2100mm |
Loading and unloading method | Manual | Automatic |
Application scenarios | Standard product Can be used as a standalone coin-cell assembly workstation for flexibility and convenience | Supports customized development Can serve as a workstation in Smart Laboratories for key lithium-battery material R&D, supporting intelligent research experiments |
